Dialog State Tracking: A Neural Reading Comprehension Approach

Paper Link

Overview

• Estimate the current belief state of a dialog given all the preceding conversation.
• The dialog state at each turn is defined as a distribution over a set of predefined variables.
• Most DST problems assume a fixed ontology.
• Key Contributions of Paper -
  • Formulate DST as a Reading Comprehension problem.
  • 3 decisions
    • slot carryover
    • slot type decision by a slot
    • slot span decision using attentive

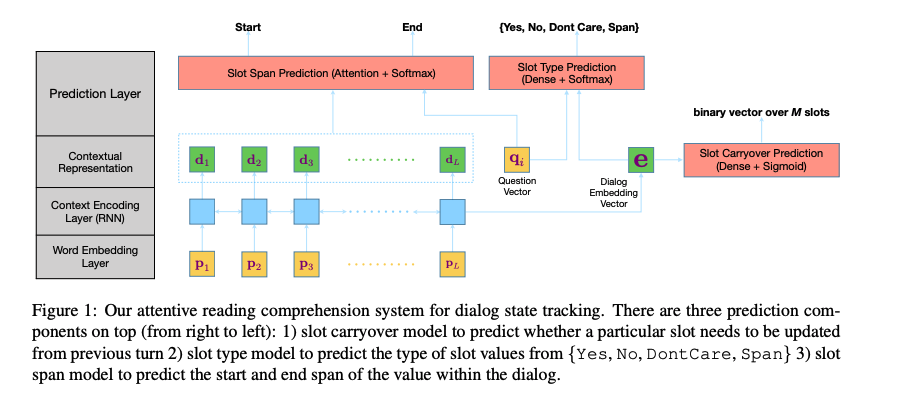

Architecture

Dialog

A sub-dialog \(D_t\) of a dialog D is defined by the values of the constituent slots \(S_t\) and hence D_t is defined as \(D_t = {s_1(t), s_2(t),....,s_M(t)}\).

Encoding

• Concatenate the user utterances and agent utterances. \({u_1, a_1, u_2, a_2... ,u_t}\)
• To differentiate, add [U] before user utterance and [A] before agent utterance.
• Use BERT to form p_i for each token in the dialog sequence and pass them as input to an RNN - \({d_1, d_2, d_L} = RNN(p1, p2, ..., p_L)\).
• Dialog embedding at turn t is e_t \(e_t = (d_1;d_L)\)
• To encode question, we ask what is the value of slot i for each of the M slots. Hence M questions.

Models

1. Slot Carryover Model - A model to decide if we’ve to carry over the slot value from previous turn or not. This is equal to \(sigmoid(e(t). W_i)\) . W_i is for all slots - the carry over model for all slots is predicted together.
2. Slot Type Model - For every slot, predict if it belongs to {Yes, No, DontCare, Span}. We concatenate the dialog representation with the question embedding and pass it through a feed forward layer followed by a softmax.
3. Slot Span Model - The question vector q_i acts as the question and the dialog encoding \({d_1, d_2, d_L}\) acts as the context. Pick a span within the context that has the slot.

Setup

1. For slot carry over models, we do a joint prediction and get M binary vector (whether to carry over the value for all slots).
2. For slot type and slot span models, we treat dialog question pairs (D_t, q_i) as separate prediction tasks for each slot.

Results
